Price:
8,800.00 ৳

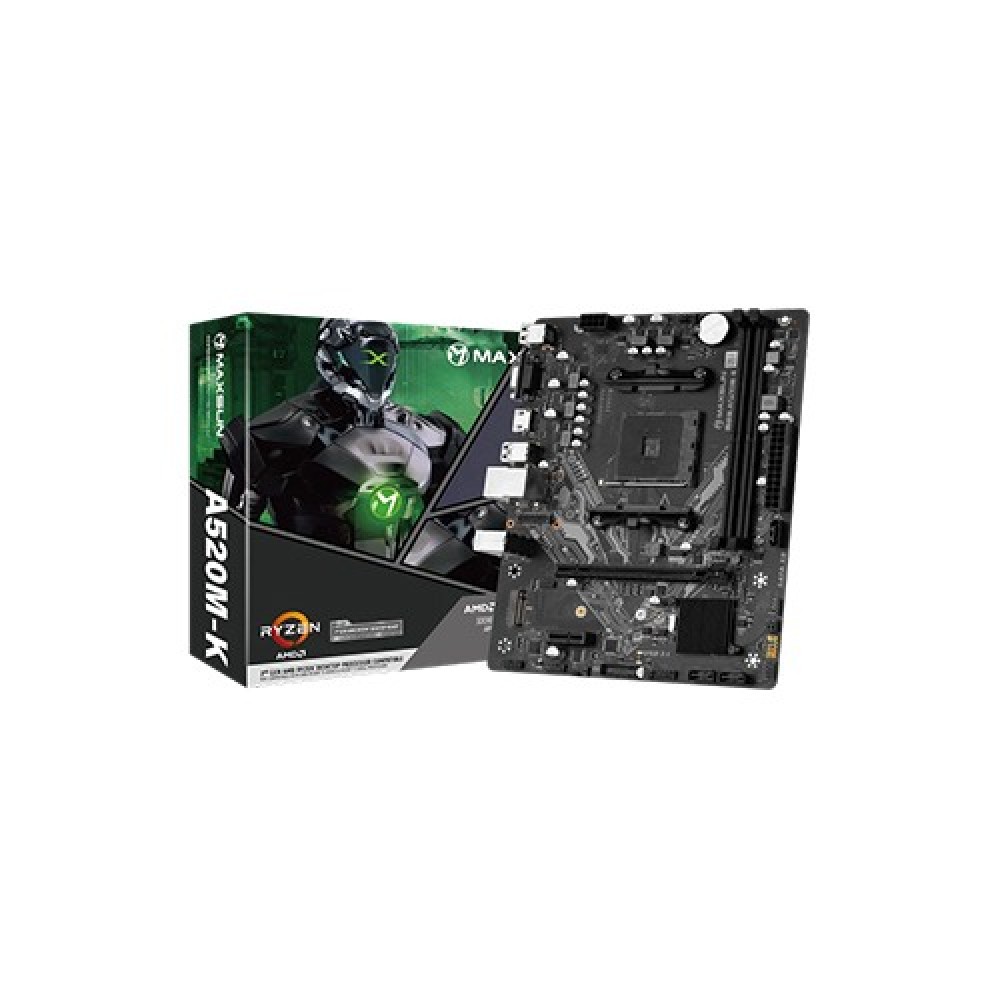

MAXSUN MS CHALLENGER A520M-K WIFI DDR4 MOTHERBOAD
Key Features
FORM FACTOR: M-ATX
CHIPSET: AMD A520 Chipset
LED FEATURE: Without Debug LED
LAN: Realtek RTL8111H 1G LAN
Specification
Processor | |
| CPU Socket | AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors |
| Mainboard | |
| Chipset | AMD A520 Chipset |
Memory | |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports AMD A-XMP OC Supports Dual-Controller Dual-Channel mode |
Storage | |
| Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 3x SATA 6Gb/s ports |
Graphics | |
| Multi-GPU | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K 30Hz *Graphics specifications may vary between CPU types. |
Networking & Connectivity | |
| LAN | Realtek RTL8111H 1G LAN |
Audio & Microphone | |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
Ports | |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| USB | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 |
Others | |
| Other Features | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Physical Specification | |
| Expansion Slots | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
| Form Factor | M-ATX: 220mm x 180mm |
Technical Info | |
| LED Indicators | Without Debug LED |
| Supported OS | Support for Windows 11 64-bit, Windows 10 64-bit |
Warranty Information | |
| Warranty | 3 Years |
