Price:
11,800.00 ৳

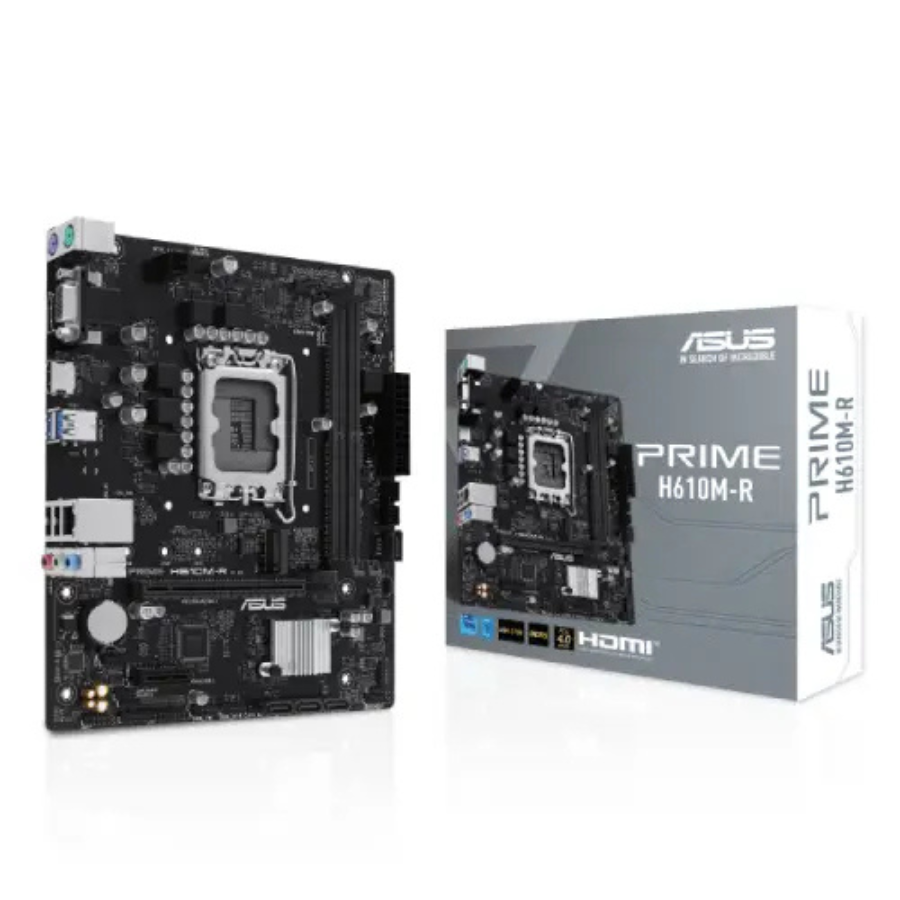

ASUS PRIME H610M-R DDR5 SUPPORT, INTEL H610 CHIPSET, LGA1700, 2xDIMM
Key Features
Model: PRIME H610M-R
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 96GB, DDR5 5600
Graphics Output: 1x HDMI, 1x VGA, 1x DP
Features: 1x M.2 slot, 1x Realtek 1Gb Ethernet
Specification
Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Audio | 3 x Audio jacks |
Expansion Slots | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Maximum Memory | Max. 96GB |
Graphics | |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. |
Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x Display port |
| VGA (s) | 1 x VGA |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports |
| Audio | ealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Warranty Information | |
| Manufacturing Warranty | 3 years Warranty |
Description
ASUS PRIME H610M-R DDR5 LGA1700 mATX Motherboard
The ASUS PRIME H610M-R Motherboard is a powerful, compact option that exemplifies the performance and versatility of a modern Asus motherboard. This Asus 610 Motherboard, built around Intel's advanced H610 chipset to support 12th, 13th, and 14th Gen processors, features DDR5 memory compatibility with dual DIMM slots that can hold up to 96GB, ensuring lightning-fast data transfer and responsiveness for both everyday computing and high-performance builds. ASUS PRIME H610M-R's mATX compact factor does not limit expansion choices, with a PCIe 4.0 x16 slot for high-speed graphics, an extra PCIe 3.0 x1 slot, and ample storage options, including an M.2 slot running in PCIe 3.0 x4 mode and four SATA 6Gb/s connections. Multiple display outputs (HDMI, DisplayPort, and VGA), integrated Realtek 1Gb Ethernet, and a variety of USB 3.2 Gen 1 and USB 2.0 connectors enable simple connection with accessories. This Asus motherboard's optimized aluminum heatsink architecture and the enhanced durability of ASUS 5X Protection III provide remarkable stability and longevity, while its intuitive UEFI BIOS caters to both novices and seasoned enthusiasts. Overall, the ASUS PRIME H610M-R Motherboard is a standout Asus 610 Motherboard that combines cutting-edge technology, efficiency, and dependability into a powerful foundation for a wide range of computer tasks.
